Creating a Stage or Raised Area


Reference Number: KB-00426
Last Modified: September 27, 2022

The information in this article applies to:

Chief Architect Premier or Chief Architect Interiors



QUESTION

I need a raised stage in one portion of my plan. How can I create it?

Stage in a theater


ANSWER

Stages are often found in churches, schools, theaters, and other public buildings. A raised area such as a stage can be created in several ways in Chief Architect. This article describes two of the most common methods.


To create a stage by defining a room

  1. Launch Chief Architect and choose to Open  the Chief Architect plan in which you would like to design a stage.


  2. Select Build> Wall> Room Divider  from the menu, then click and drag divider lines to define the stage area.

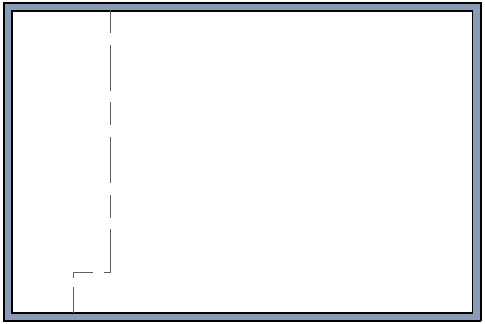

    Room Divider Line created to create the stage


  3. Using the Select Objects  tool, click inside the stage room formed by the room divider to select it, then click the Open Object  edit button.


  4. On the Structure panel of the Room Specification dialog, specify an appropriate Floor value for your stage height, then click OK to close the dialog and apply your change.

    In this example, a value of 36" is used.

    Specifying the Floor to be 36" higher than the rest of the structure


  5. Use the Stair tools to create a staircase if desired, then take a Camera view to see the results.

    Camera view of the a staircase leading to a stage


To create a stage using a 3D/polyline solid

  1. Launch Chief Architect and choose to Open  the Chief Architect plan in which you would like to design a stage.


  2. Select Build> Primitive> 3D Solid  from the menu, then click and drag to draw a rectangle.

    In X13 and prior program versions, navigate to Build> Primitive> Polyline Solid
    instead.

    Creating a 3D/polyline solid


  3. Using the Select Objects  tool, click on the 3D/polyline solid to select it, and use its edit handles to resize it and move it into your desired position.

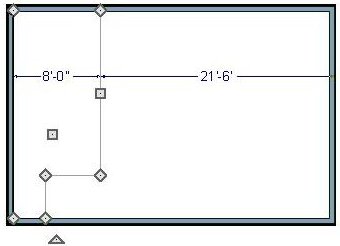

    Modified 3D/polyline solid that is still selected


  4. With the 3D/polyline solid still selected, click the Open Object  edit button.


  5. In the 3D/Polyline Solid Specification dialog that opens:

    Modify the Height/Thickness and Finished Floor to Top/Bottom values to your liking

    • Set the Height or Thickness to your liking, then specify where the 3D/polyline solid will be placed in relation to the floor.

      In this example, both the Height/Thickness and the Finished Floor to Top values are set to 36."

    • On the Materials panel, click on the 3D/polyline solid component, then click the Select Material button.

    • In the Select Material dialog that opens, browse to the material you would like to apply to your stage platform, select it, then click OK.

    • Click OK to close the dialog and apply your changes.


  6. Use the Stair tools to create a staircase if desired, then take a Camera view to see the results.

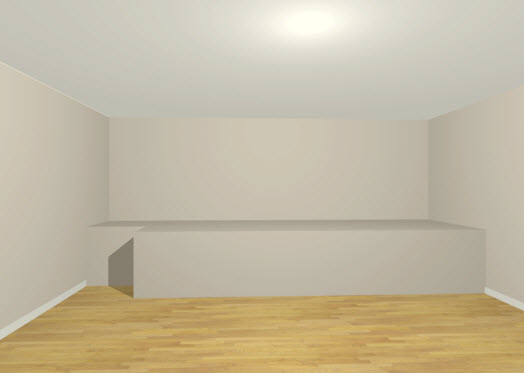

    Camera view of a stage created using a 3D/polyline solid
