Adding Glass Doors to a Cabinet

Reference Number: KB-00435
Last Modified: May 15, 2017

The information in this article applies to:

Chief Architect Premier or Chief Architect Interiors


I am not able to select the Glass Doors option in my cabinets' specification dialogs.  How do I specify glass doors when the option is grayed out?

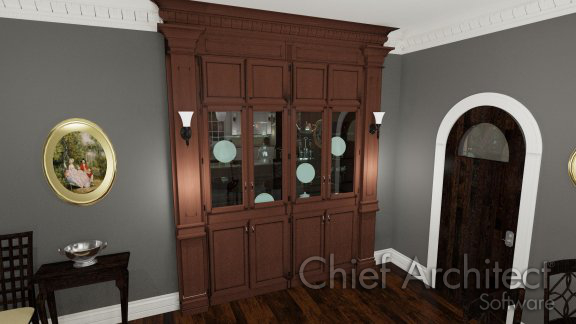

A china hutch made from cabinets with glass doors


The Glass Doors checkbox option will be grayed out if you are using a Panel for the cabinets door Style.

To specify glass doors on a cabinet

  1. Open the plan file in which you would like to create cabinets with glass doors.

  2. Click the Select Objects  tool and click on a base, wall or full height cabinet to select it, then click the Open Object  edit button.

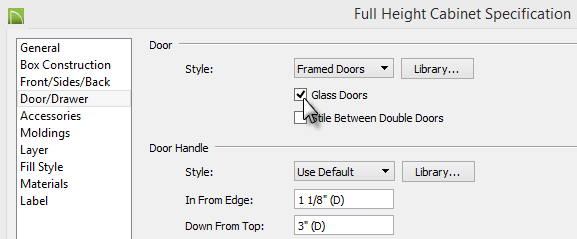

  3. On the Door/Drawer panel of the Cabinet Specification dialog:

    • Select Framed Doors or Slab Doors from the Style drop-down list in the Door section at the top of the dialog.

    • Check the box beside Glass Doors in the dialog.

      Alternately, you can select the Library button next to the Door Style to display the Select Library Object dialog and browse or search for a variety of different glass door options.

  4. Make any additional desired changes and click OK to close the dialog.
