Creating a Foundation Room with a Lowered Floor


Reference Number: KB-01236
Last Modified: February 23, 2017

The information in this article applies to:

Chief Architect Premier or Chief Architect Interiors


QUESTION

My current project calls for a wine cellar in the basement with a floor that is lower than the rest of the foundation. How can I do this?

wine cellar with a lowered floor in the basement


ANSWER

A basement room can have a lowered floor height just like a room on any other floor by modifying the Floor Height on the Structure panel of the Room Specification dialog. .



To create a basement room with a lowered floor

  1. Open the plan file in which you would like to create a basement room with a lowered floor.

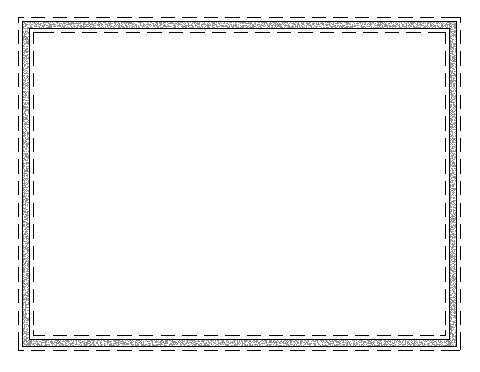

    • In this example, a simple rectangular structure is used. The ceiling height is 96".

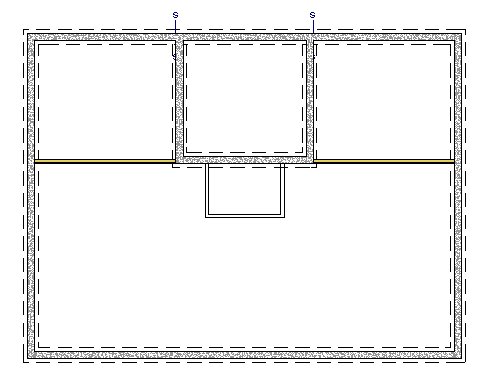

  2. While on the foundation floor, select Build> Wall> Straight Foundation Wall , then click and drag to draw walls that create the room that will have a lowered floor.




  3. Click the Select Objects  button, then click inside of the room to select it and click the Open Object  edit button.

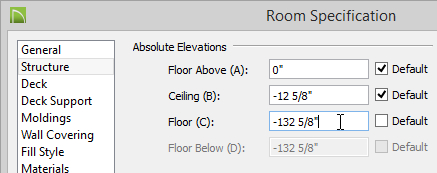

  4. On the Structure panel of the Room Specification dialog, lower the Floor (C) Value of the selected room.



    • In this example, the Floor (C) value is dropped a total of 24", to -132 5/8".

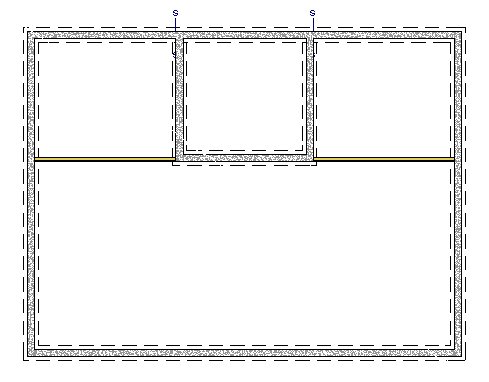

  5. Select Build> Wall> Straight Interior Wall , then click and drag to draw any additional interior walls that you may need.


    • Only walls that define changes in height in the foundation need to be foundation walls with concrete or CMU materials and footings.


To add stairs outside of the lowered room

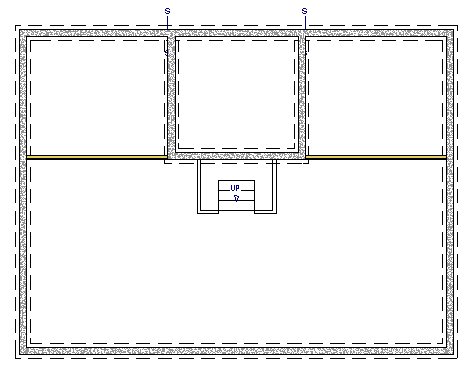

  1. Select Build> Railing and Deck > Straight Railing from the menu, then click and drag to draw a room at the location where you want to add stairs to the lowered room.




  2. Click the Select Objects button, then click inside of the staircase room to select it and click the Open Object edit button.

    • On the Structure panel of the Room Specification dialog, specify the same floor height as you did for the room with the lowered floor - in this example, -132 5/8".

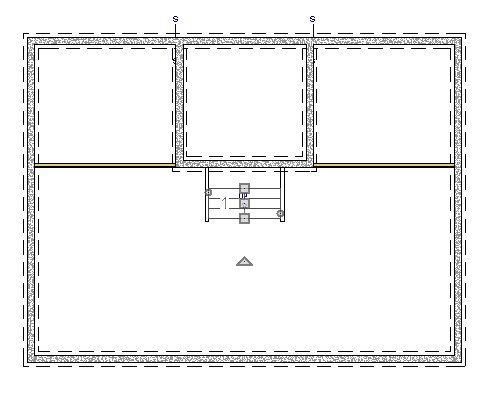

  3. Select Build> Stairs> Straight Stairs , or Build> Stairs> Click Stairs  in X8 and prior versions, then click inside of the staircase room that you just created, near the railing that you want the stairs to build up to.


    Click on the stairs to select them, then adjust their width as needed using the edit handles.

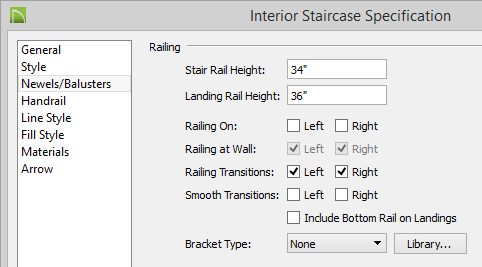

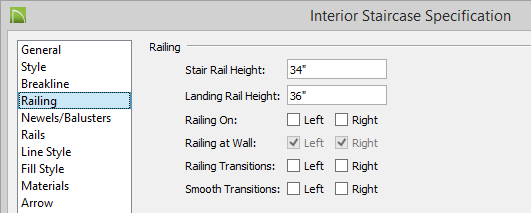

  4. With the stairs still selected, click the Open Object edit button and on the Railing panel of the Interior Staircase Specification dialog, specify what sides of the stairs you would like to have Railing On, then click OK. The Railing On settings can be found on the Newels/Balusters panel in X8 and prior versions.




  5. Select Build> Door> Hinged Door  from the menu, then click to place a door between the room with the lowered floor and the staircase room.
