HVAC No.3 Registers and Grates


Mechanical, Electrical, Plumbing / HVAC
130

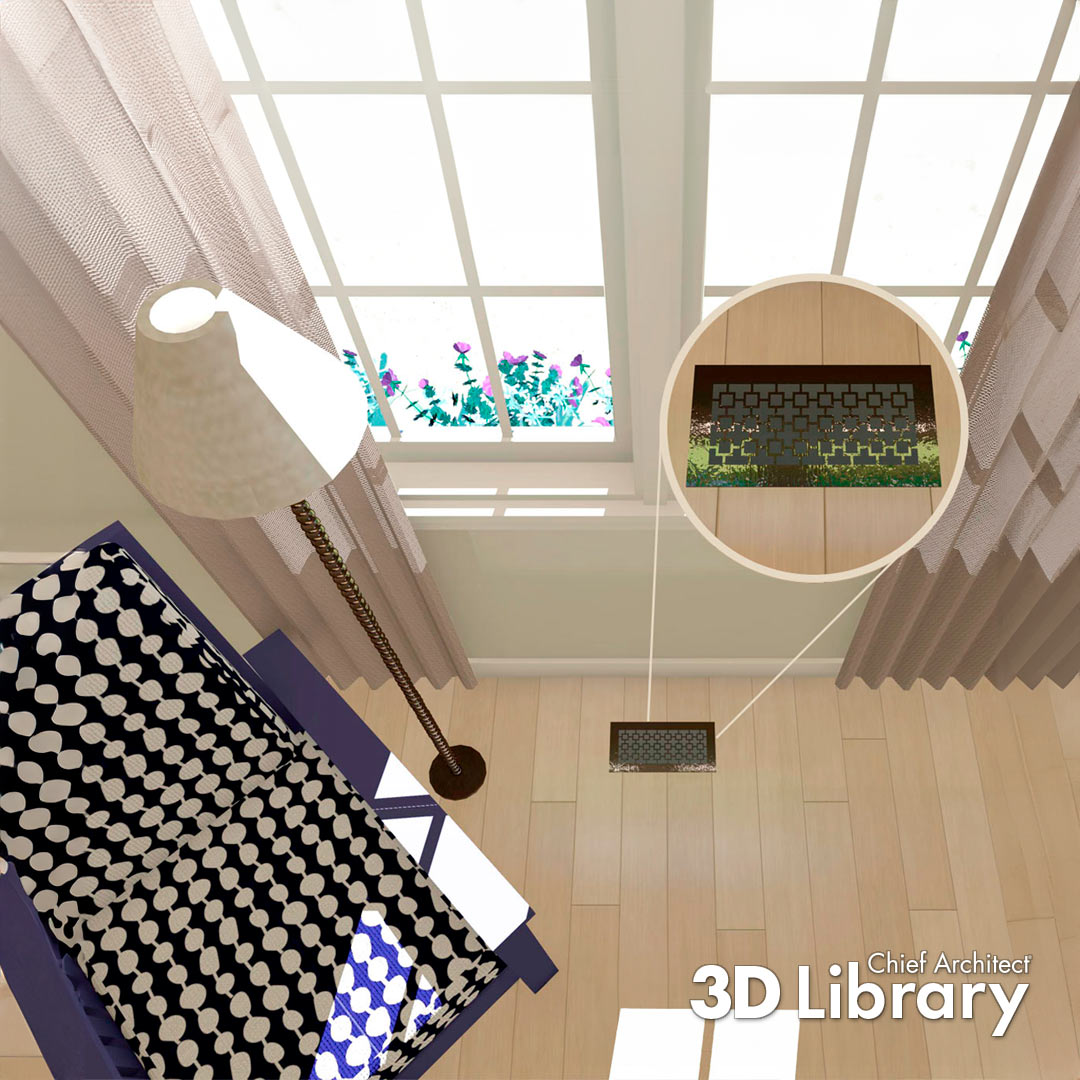

Use this catalog in conjunction with our other HVAC tools and catalogs to flesh out your ventilation system, returns, and registers. Wall mounted registers and access panels leverage the "Cuts Hole in Wall" feature to automatically create openings for the ductwork. See the selection: hometalk.chiefarchitect.com/gallery/image/703-hvac-no3-registers-and-grates/

Info

Publisher: Chief Architect
Date Uploaded: 06/11/18
Last Updated: 10/24/24
Likes: 130
Downloads: 19176
Compatible With: Chief Architect Premier
Chief Architect Interiors (Legacy)
Home Designer
Home Designer Pro (Legacy)
Home Designer Suite (Legacy)
Home Designer Architectural (Legacy)
Versions: X13 / 2022 (2.43 MB)
X14 / 2023 (2.43 MB)
X15 / 2024 (4.86 MB)
X16 / 2025 (4.86 MB)
X17 / 2026 (9.46 MB)
