Using the Reflect About Object Tool


Reference Number: KB-00284
Last Modified: December 27, 2018

The information in this article applies to:

Chief Architect Premier or Chief Architect Interiors



QUESTION

How can I create a flipped, mirrored, or reflected copy of an object, block, or even an entire structure?


ANSWER

Tools such as Copy/Paste, Reflect About Object, and Edit Area, will allow you to to create reflected copies of one or more objects with just a few clicks.


To reflect an object about a line

  1. Open a plan and focus on the object you'd like to reflect.


  2. Select CAD> Lines> Draw Line  from the menu, then click and drag to draw a CAD line. This line will serve as the axis that the object will be flipped around.

    • If you wish to flip the object so that its right side becomes its left side, draw a vertical line.

    • If you wish to flip the object so that its top becomes its bottom, draw a horizontal line.


  3. Next, click on the Select Object   tool, then click on the object so that it's selected.

    Multiple objects can also be selected and reflected all at once. Please see the article on Group Selecting Objects in the Related Articles section below.


  4. Click on the Reflect About Object  edit button.

    Click on the Reflect About Object edit tool after an object has been selected


  5. Click on the CAD line that you drew in step 2 above.


  6. The object will now be located on the other side of the line and its original orientation will be reversed.

    Object has been reflected about a CAD line



To copy and reflect an object

  1. Begin by repeating steps 1 through 3 above.


  2. With the object selected, click the Copy/Paste  edit button.


  3. Click on the Reflect About Object  edit button.


  4. Click on the CAD line as was done in step 5 above.


  5. A reversed copy of the object will be created on the other side of the line, while the original will remain unchanged.

    Original object and a copy of the object that has been reflected

    Note: In Addition to using a CAD line as your axis of reflection, other objects can be used as well. Once you click on the Reflect About Object tool, a gray dashed line will follow your cursor and snap to various points on objects your cursor crosses. This dashed gray line is the axis the selected object will reflect about.

    Reflecting about a CAD box


To copy and reflect a structure

  1. Open the plan in which you would like to copy and reflect your structure.


  2. Select Window> Fill Window or press the F6 key on your keyboard to make the plan fill the Chief Architect window.


  3. Select CAD> Lines> Draw Line from the menu, then click and drag a line to represent the axis that you will reflect the plan across.

    • Draw the line reasonably close to the plan, but make sure that there is some space between the two so that you can select the plan without selecting the line as well.


  4. Select Edit> Edit Area> Edit Area(All Floors) from the menu, then click and drag a rectangular marquee around the entire structure.

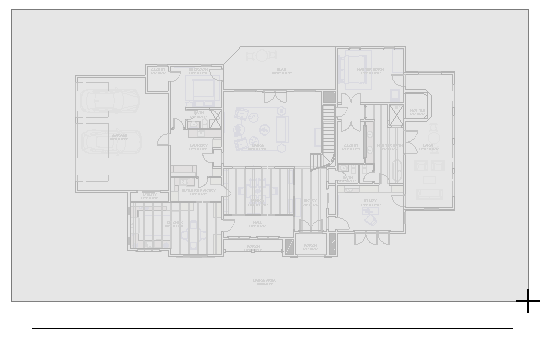

    Creating a selection marquee using the Edit Area tool

    If a Terrain Perimeter is included in this selection and subsequently copied, the copy will be converted to a Polyline, as only a single Terrain Perimeter can be present in a plan.


  5. With the structure entirely contained in the marquee, click the Copy/Paste edit button.

    If you want to reverse or mirror the existing structure, and not create a copy, skip this step.


  6. Click the Reflect About Object edit button.


  7. Click on the CAD line that you drew in step 3 above.


  8. A mirrored copy of the original plan will now display on the opposite side of the CAD line.

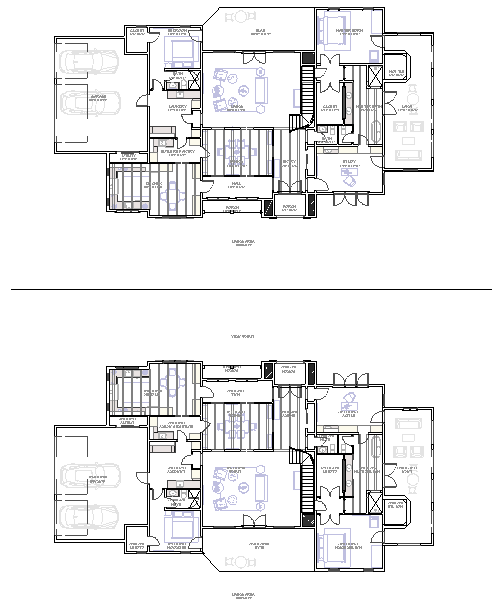

    Reflect copy of a structure


  9. With the copied portion still selected, you can then adjust its position next to the other structure, if required, such as in a duplex scenario.

    This is also a good time to take a few moments to examine the plan for any objects that did not reflect as expected. Some objects - notably roofs, dormers, and framing objects - may need to be edited or deleted and replaced.
