Creating a Room with a Short Ceiling or Plant Shelf Closet Effect


Reference Number: KB-03057
Last Modified: June 18, 2018

The information in this article applies to:

Chief Architect Premier or Chief Architect Interiors


QUESTION

How do I create a room or closet with a short, flat ceiling, within a larger room such as a closet with a plant shelf?

Shelf closet in entry

ANSWER

Creating a room which is not full height, in a larger room with a cathedral or vaulted ceiling can be accomplished using the shelf ceilingsetting within a rooms specification dialog.


To create a room with a short ceiling

  1. Select Build> Wall> Straight Interior Wall and click and drag to create walls for an interior room.

    In this example, we've created a small closet.


  2. Once drawn, use the Select Objects  tool to select the room and then click the Open Object  edit button to open the Room Specification dialog.

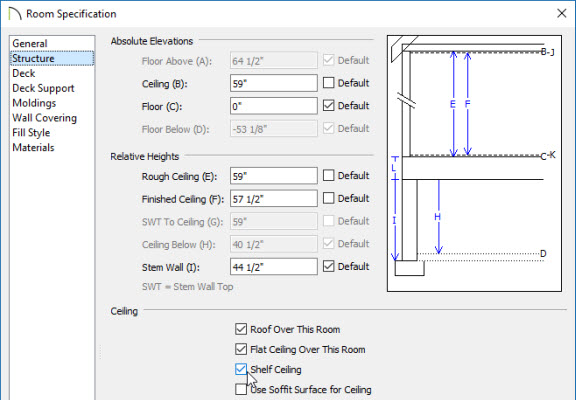

  3. Click on the Structure panel, check the Shelf Ceiling box under the Ceiling category, and then set the Finished Ceiling (F) under the Relative Heights category to be a lower value of your choice.




  4. Click OK to close the dialog and take a 3D Full Camera  view to see the result.
