Creating Stairs Between Floor Platforms Located on the Same Floor Level


Reference Number: KB-00846
Last Modified: February 8, 2019

The information in this article applies to:

Chief Architect Premier or Chief Architect Interiors



QUESTION

I have two areas on the same floor level with varying heights. Is there an easy, automatic method to create a set of stairs between these two areas or rooms?

Interior view of sunken living and dining rooms with stairs between each floor level


ANSWER

Both the Draw Stairs and Straight Stairs tools allow you to automatically create a stair section between floor platforms on the same floor of a plan, or from an exterior room such as a deck or porch down to the terrain, using just a single click.


To create stairs between platforms on the same floor

  1. Select File> New Plan  to open a new, blank plan and use the Straight Exterior Wall  tool to draw a simple, rectangular structure.

    Floor plan view of a base rectangular structure


  2. Navigate to Build> Railing and Deck    or Build> Wall , select a railing or wall tool of your choice, then create a railing or wall dividing the structure into two separate rooms.

    Straight railing placed in the middle of the structure to create two separate rooms


  3. Click the Select Objects  tool, click in one of the rooms to select it, then click the Open Object  edit button.


  4. On the General panel of the Room Specification dialog that opens, specify a Floor value that is different from the adjacent room, then click OK.

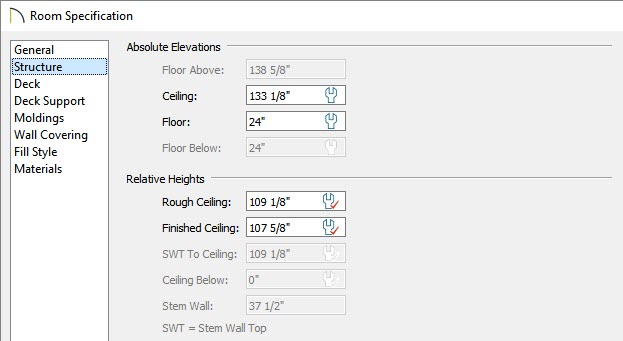

    Adjust the Floor value to be different than what is set for the adjacent room


  5. Select Build> Stairs> Draw Stairs or Straight Stairs , move your cursor into the room with the lower floor height, and position it within a few feet of the railing or wall that is separating the two rooms, then click once.

    A set of stairs will be created between the two rooms, along with an opening in the railing or wall.

    Stair section created between the two rooms with varying floor heights
