Changing Joist Directions


Reference Number: KB-02932
Last Modified: February 7, 2019

The information in this article applies to:

Chief Architect Premier or Chief Architect Interiors

 Home Designer Professional



QUESTION

I want to change the direction of floor or ceiling joists in a certain area of my plan. How can this be done?


ANSWER

You can specify the direction that joists build using a Joist Direction Line, however this will force all the joists sharing a floor platform area (i.e., all relevant floor or ceiling at the same elevation) to build in the direction specified. To break up the direction joists build without changing the elevation of your floors or ceilings, place a Bearing Line along with multiple Joist Direction Lines to manually control the direction the joists generate at.

In this example, a simple four-walled structure will be used. Notice that a basic foundation has already been created and floor joists have been generated for the first floor.

Foundation with floro joists generated for the first floor


To draw Bearing and Joist Direction Lines

  1. Select Build> Framing> Bearing Line  and draw a line where you want the joist direction to change.

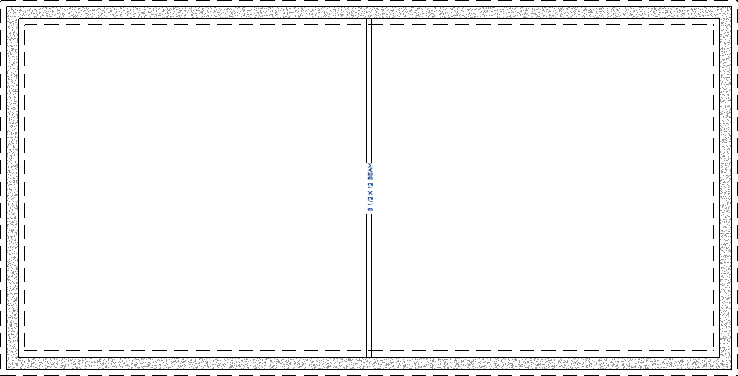

    Bearing Line placed on the foundation level


  2. Select Build> Framing> Joist Direction  and draw a line on either side of the Bearing Line, each in the direction you'd like the joists to run.

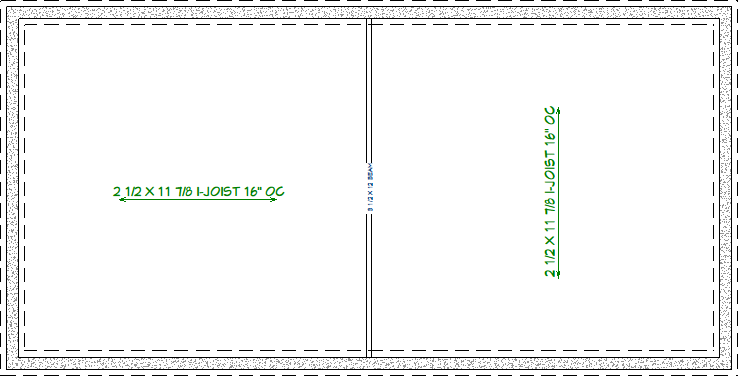

    Two Joist Direction lines drawn on the foundation

    Note: It's important to remember that framing builds for the ceiling, or sub-floor, above the currently selected floor. For example, to control the framing of the floor joists of Floor 1, these lines must be drawn on Floor 0 like shown above.


  3. Lastly, if framing is not set to automatically rebuild, navigate to Build> Framing> Build Framing  and regenerate the appropriate floor or ceiling framing to see the changes.

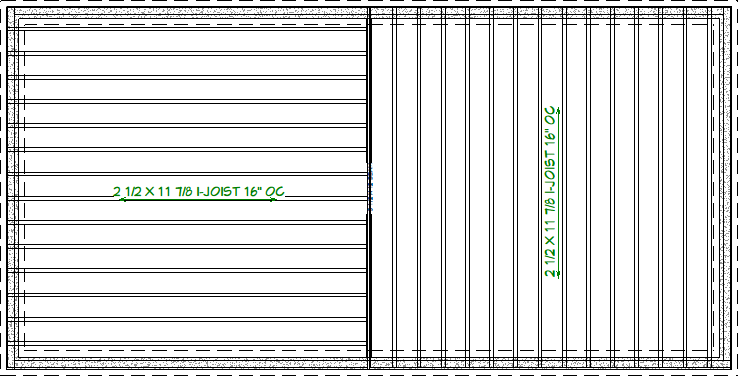

    Floor joists rebuilt to take on the Joist Direction Lines that were placed


  4. Take a Perspective Framing Camera view to see the results.

    Perspective Framing Overview displaying floor joists
