Temporary dimensions will display along the length of a wall as it is drawn, helping you draw walls to the desired length. Although dimensions display as you are drawing, you do not need to position walls precisely when you first draw them they can be easily moved into place at any time.
To draw a structure
First launch Chief Architect and select File> New Plan to start a new plan.

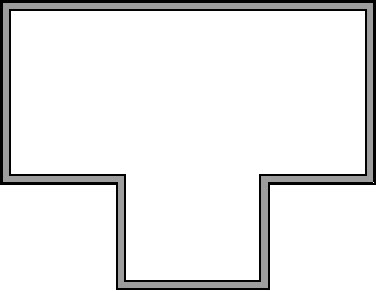

Select Build> Wall> Straight Exterior Wall , then in a clockwise fashion, click and drag out walls to create a structure. In this example we will use a basic square structure with a bump-out.

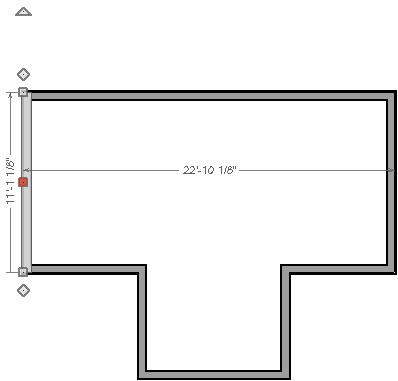

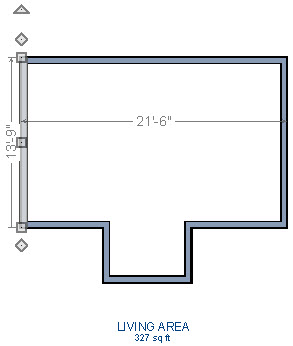

Once you have created your structure, use the Select Objects tool to select the left wall, displaying the temporary dimensions between this wall and the one on the right as shown in the image below.
When you select a wall you should have a temporary dimension display along the length of the wall and the distance between the selected wall and the closest wall running parallel to it.

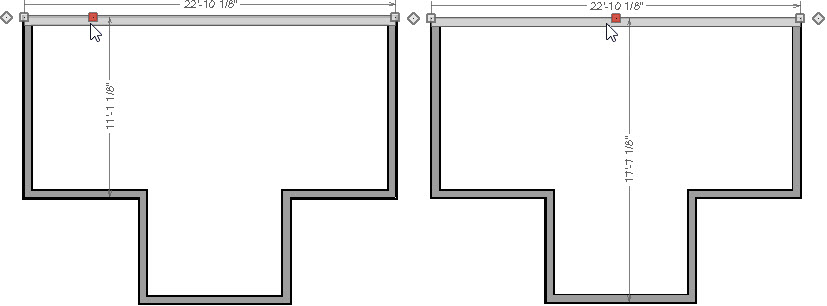

In the case of our bum-pout the dimension will be determined by where we have clicked on our selected wall.
Note: Temporary Dimensions will not display if there is a Manual Dimension, Interior Dimension or Auto Exterior Dimension already measuring the distance.
To precisely move walls using temporary dimensions
Use your Select Objects tool and click on the left wall. You will see the two temporary dimensions display.

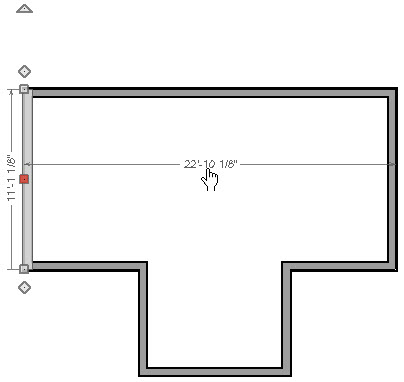

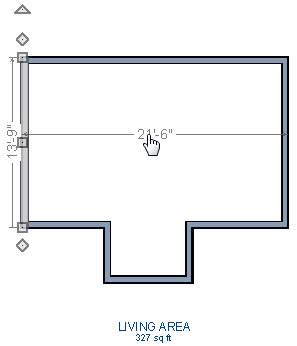

Move your cursor over one of the dimensions displayed. You will notice that the arrow cursor turns into a pointing hand cursor .
Once you see the cursor change, use a single left click on that dimension to edit it.

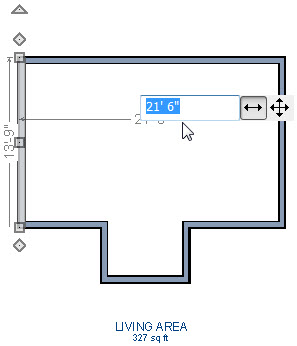

The actual distance displays in a text field.

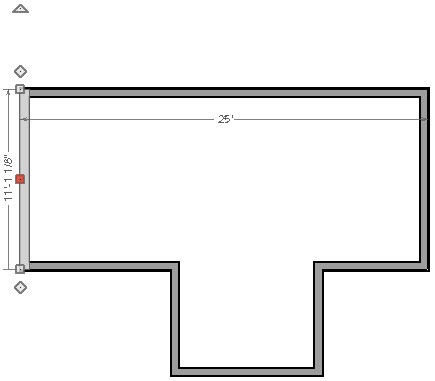

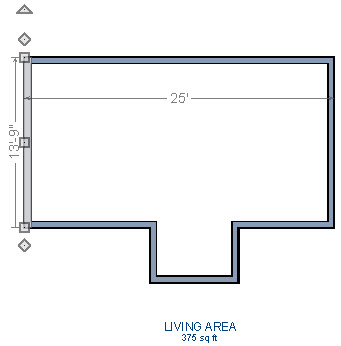

Enter a new value, use the enter key on your keyboard to close the text field and apply the change so that the wall will move the specified distance.
Numbers entered with an apostrophe denote feet and the numbers entered with quotes denote inches. If neither apostrophes nor quotes are included, the entered value defaults to inches.
Repeat this process for the remaining walls as necessary, continuing in a clockwise direction.
When resizing a house using dimensions, it is important to work your way around the house in one direction. Relocate one wall at a time in succession so that you do not redefine the same dimensions more than once.
To precisely move walls using Auto Exterior Dimensions
Once you have created your structure, select CAD> Dimensions> Auto Exterior Dimensions to generate dimensions around the plan’s exterior in floor plan view.
Auto Exterior Dimensions do not generate properly if there is a gap in the exterior walls. For example, sometimes angled walls may not connect properly. If automatic dimensions do not generate, try Build> Wall> Fix Wall Connections .
Starting in X7, you can check Ignore Interior Walls in the Auto Exterior Dimension Defaults dialog in order to prevent interior walls that intersect exterior walls from being located by the Auto Exterior Dimensions tool.
You can use the same procedure of selecting a wall, clicking the controlling dimension and entering the exact value you want this dimension to be.
If you are not sure which dimensions are the controlling dimensions you can identify these by moving your cursor over the dimensions.
When your cursor turns to a hand then you are over a controlling dimension for the selected wall.

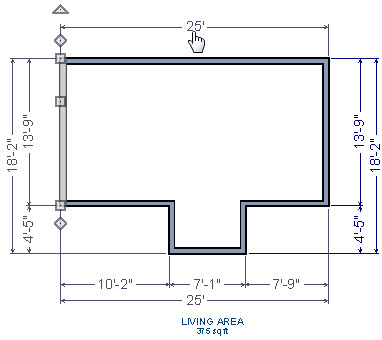

There are several Controlling Dimensions per wall when using the Auto Exterior Dimensions to move walls. In the image below, each dimension circled in red is a controlling dimension for the selected wall.
As when using temporary dimensions, you will want to continue in a clockwise direction when moving walls with dimensions.
This same procedure for adjusting walls works with manually drawn dimensions as well, including those drawn with the Manual Dimension and Interior Dimension tools.
