Controlling the Minimum Display Size of Temporary Dimensions and Labels

Reference Number: KB-01110

Last Modified: September 25, 2025

QUESTION

The display of temporary dimensions on my screen is too small when I am zoomed out. How can I make their display bigger so that they are easier to read without affecting the size they will be when printed?

ANSWER

The minimum display size of temporary dimensions and object labels can both be specified on the Appearance panel of the Preferences dialog.

To change the minimum display size of temporary dimensions and labels

Select Edit> Preferences if you're on a Windows PC or Chief Architect> Preferences if you are on a Mac.

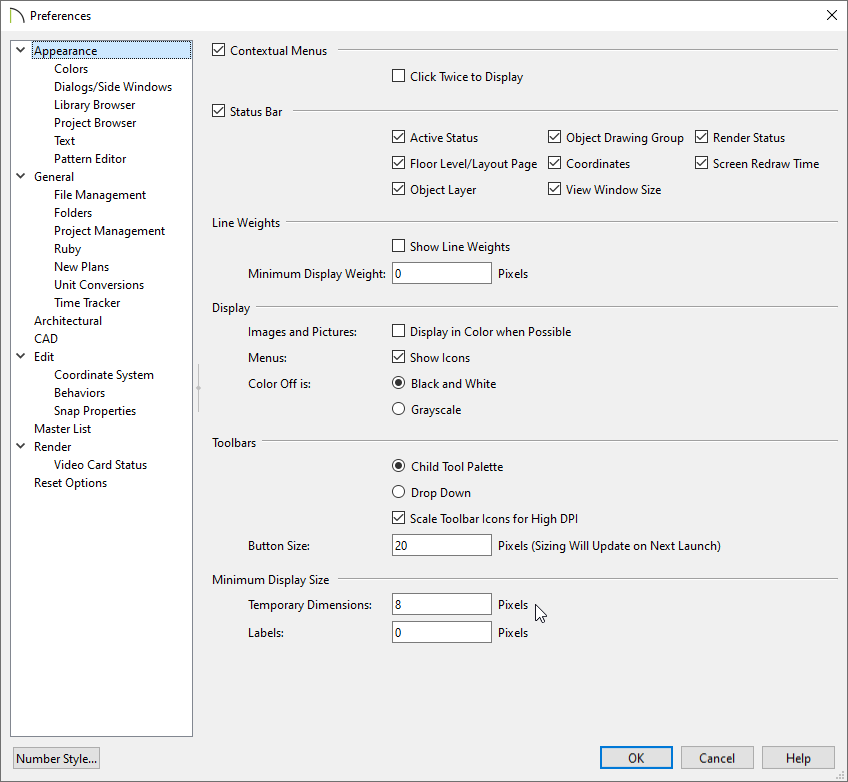

On the Appearance panel, under the Minimum Display Size section, specify the number of Pixels for Temporary Dimensions and/or Labels.

This is the on-screen size and does not affect printed or exported output. To use the printed scale, set these values to 0 or turn on Print Preview.

Printed dimension and label sizes are set by modifying the text styles used by those dimensions or labels.
Click OK to apply the change.

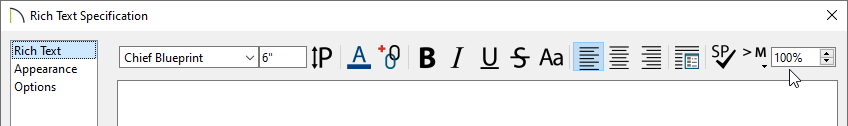

To change the zoom level of rich text while in the Rich Text Specification

Select a rich tech object and Open it to specification.
On the Rich Text panel of the dialog that opens, adjust the Zoom percentage in the top corner to adjust the display size of the text while in the dialog.

Note: This will not edit the size of the text within your plan/layout file. For information on adjusting the size of text placed in your designs, please see the Related Articles section below.
